The Beat

Fall 2016

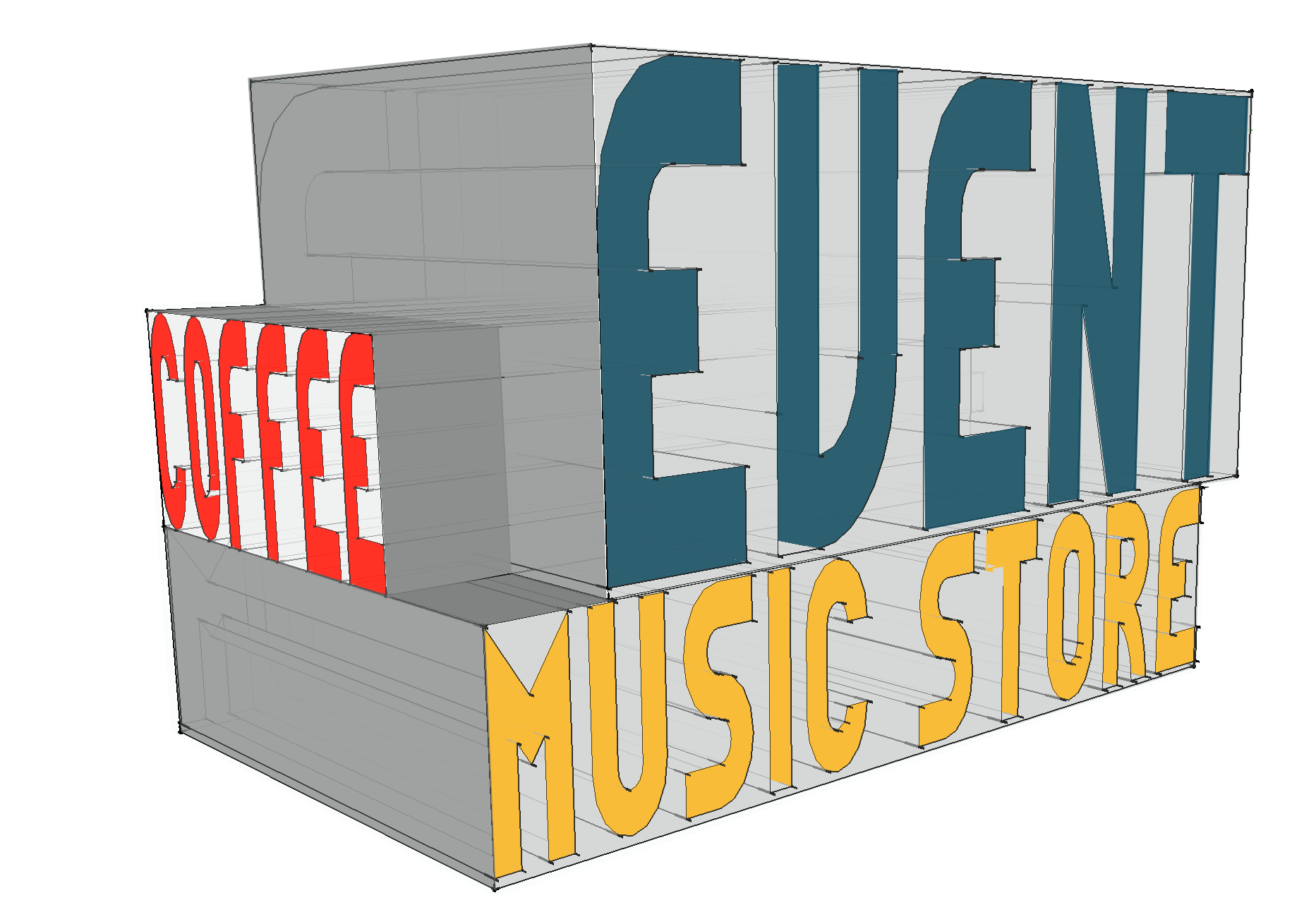

My last studio before my thesis project was taught by visiting professors from the LA architecture firm, Design, Bitches. We were to be inspired by the stimulating, funky LA aesthetic with focus on merging multiple programs within one space, 2D graphics in 3D application, creating public spaces for the users to linger, and unconventional standard building material application within the interior. The three programs chosen were a music listening library on the basement level, a coffee & bar eatery on street level, and a rooftop event space. We were also encouraged to remove 25% of the building.

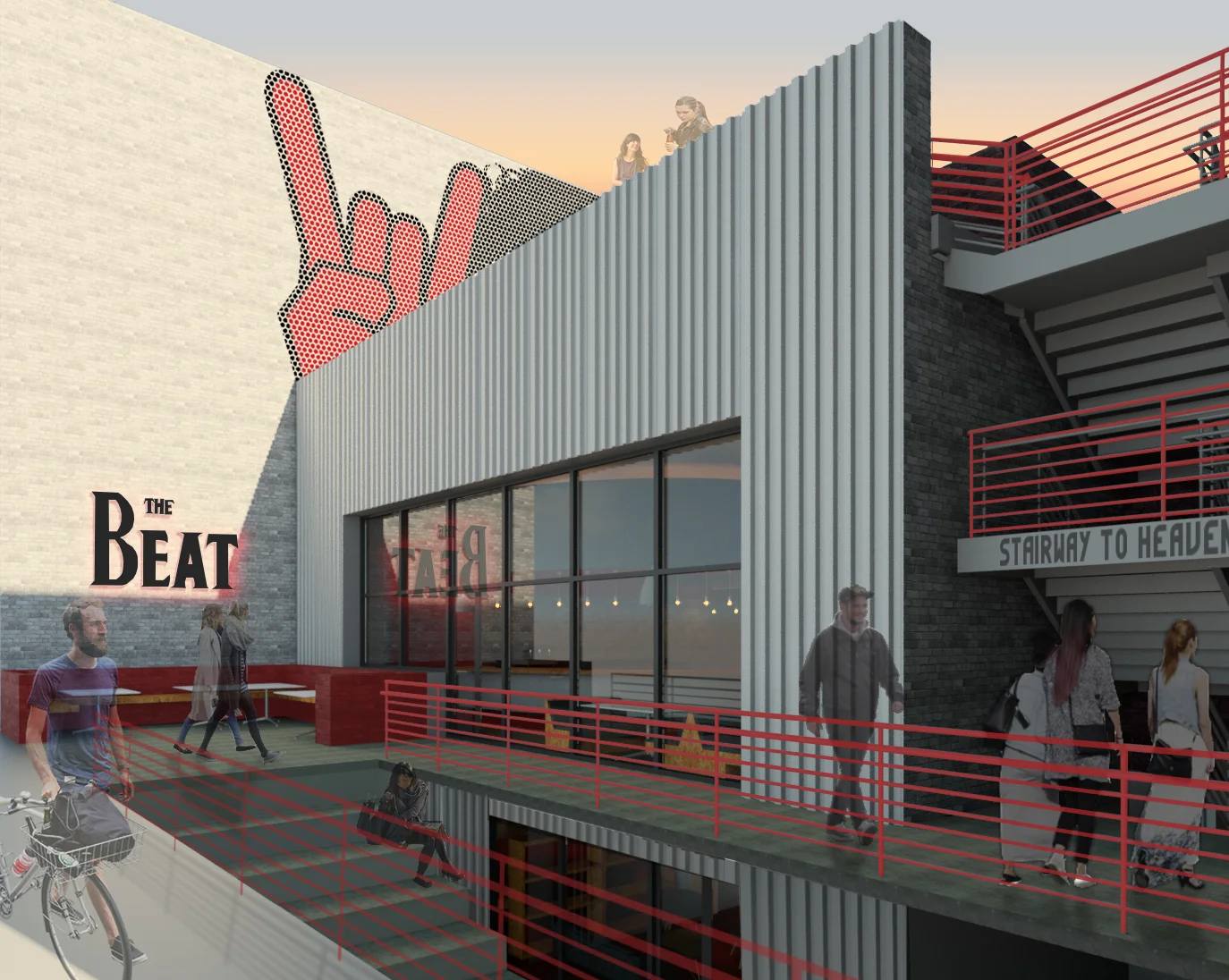

Street Level Entrance.

Revit 2016. Photoshop

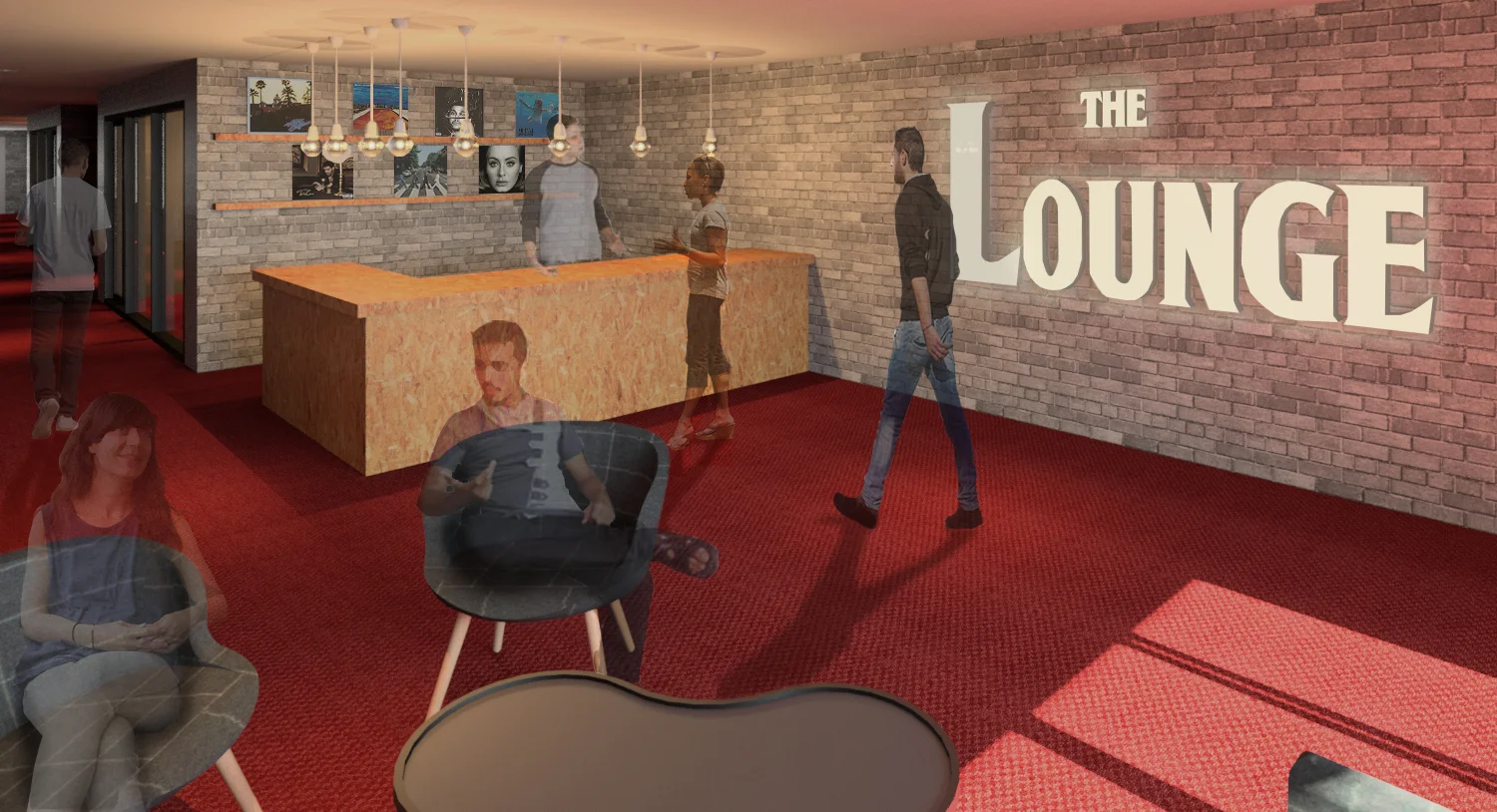

The Listening Lounge

Floor Plan: Basement Level - Record Store & Listening Lounge

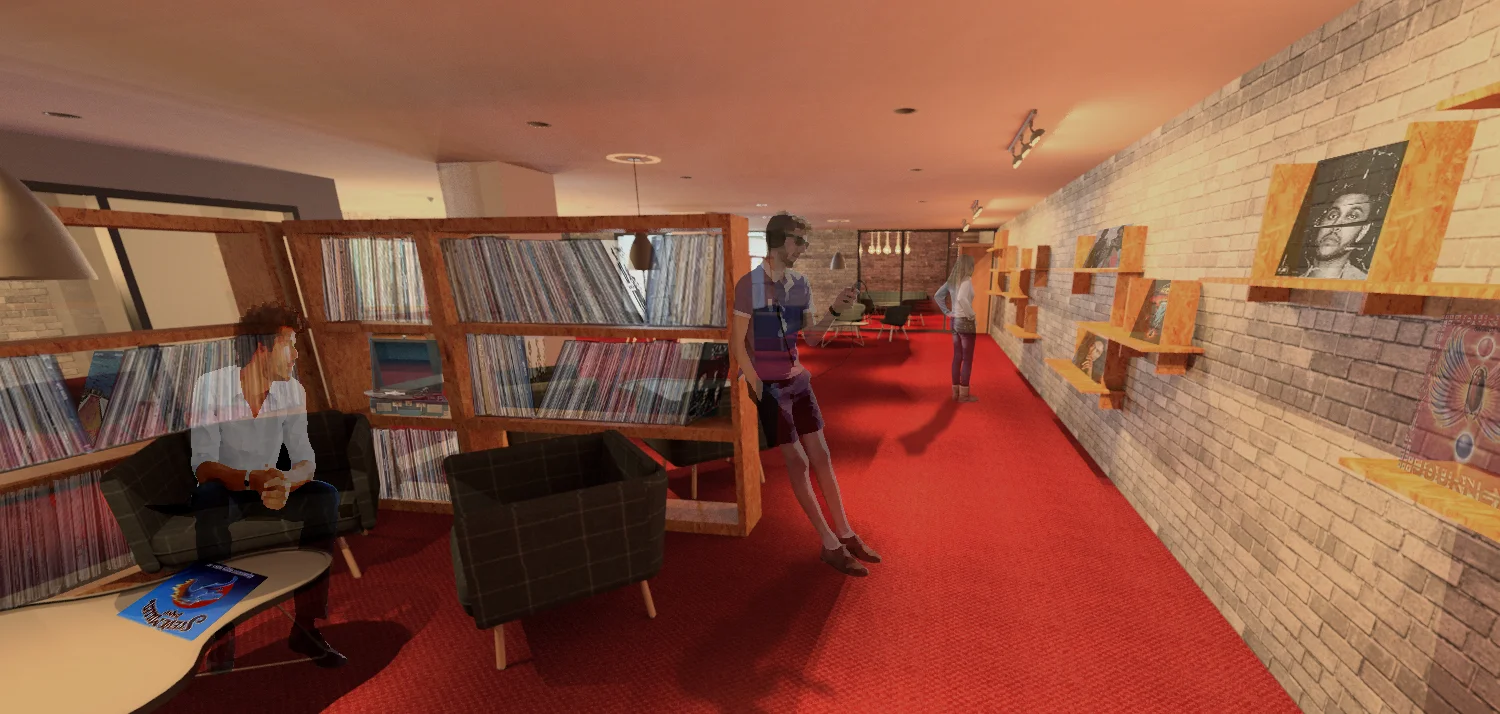

Record Store Entry

Revit 2016. Photoshop.

Cozy corners for listening to records, CDs, mix tapes, etc.

Revit 2016. Photoshop.



The BEat Coffee Shop + Bar

Floor Plan: Street Level - The Beat Coffee Shop + Bar

Coffee Bare Area. Rendered in Revit & Photoshop

Revit 2016. Photoshop.

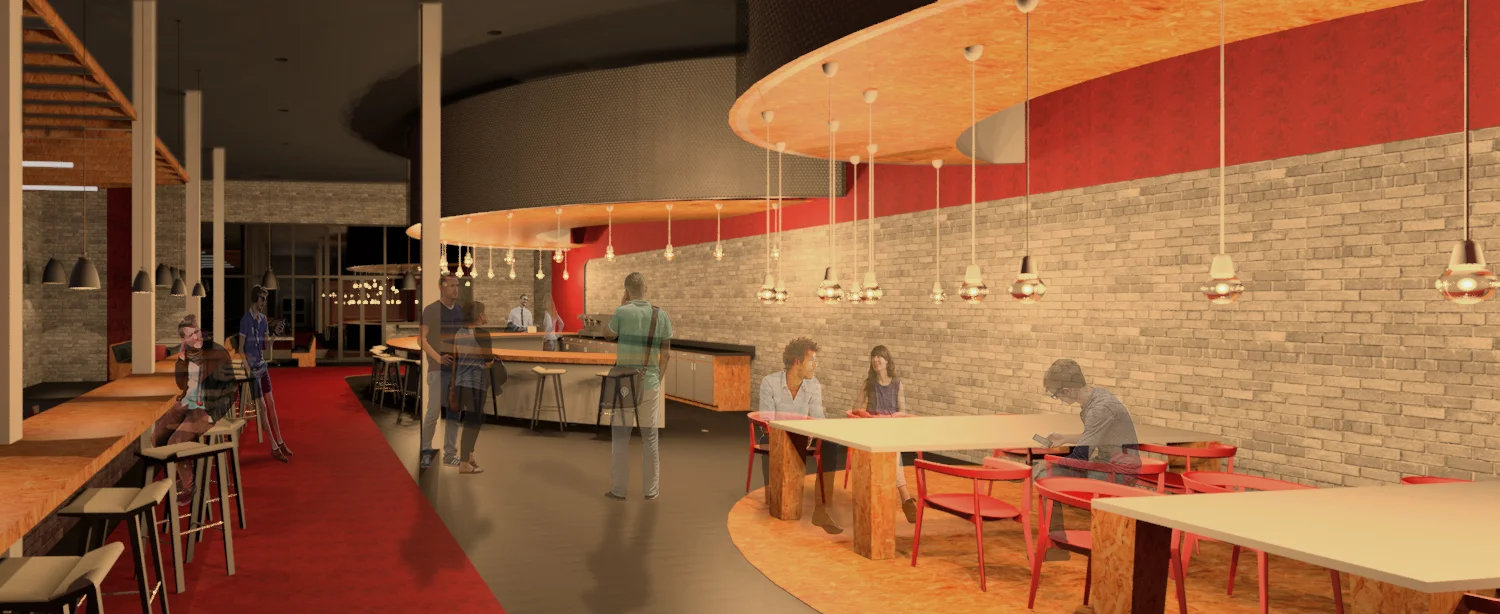

Sunken Seating Area

Revit 2016. Photoshop.



The Roof Top Event Space

Floor Plan: Roof Top Level - Event Space

Roof Top Event Space

Revit 2016. Photoshop.
